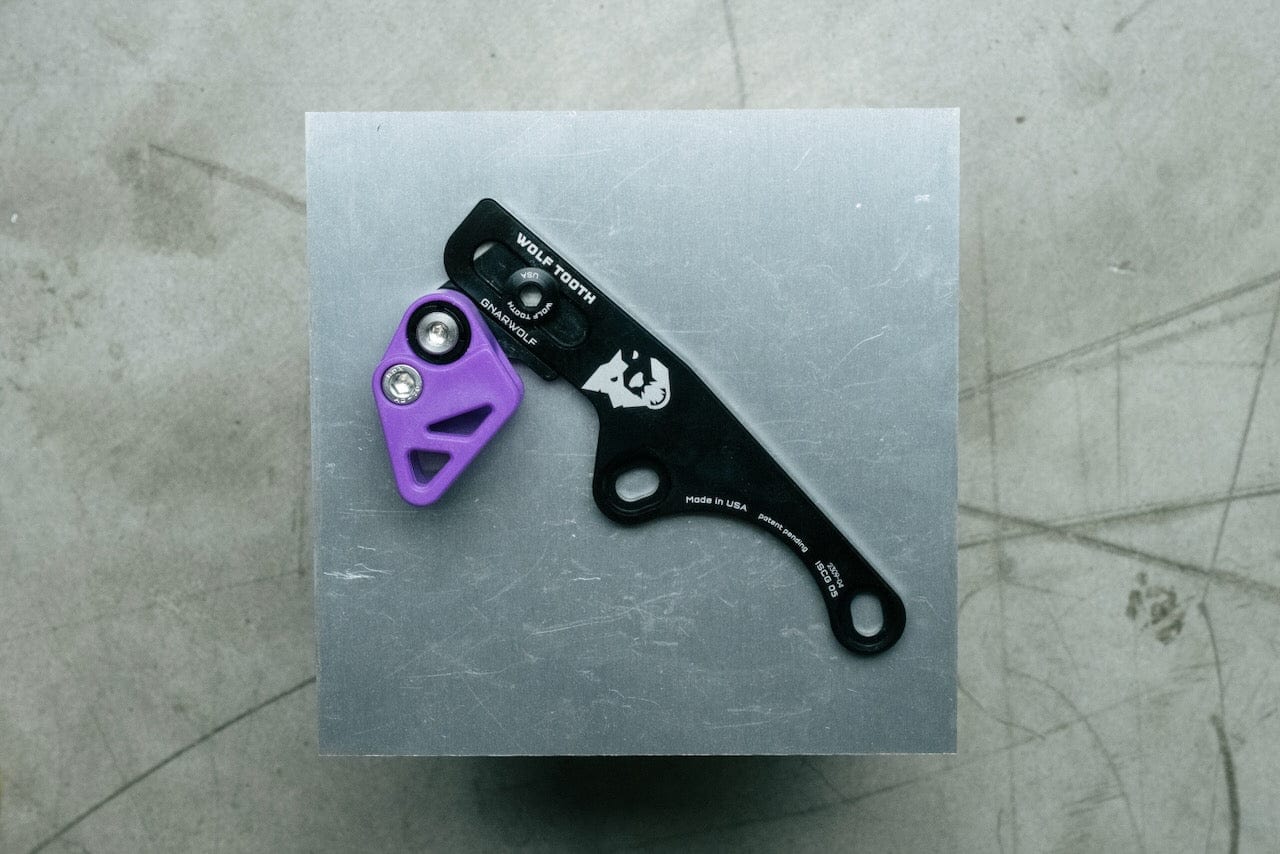

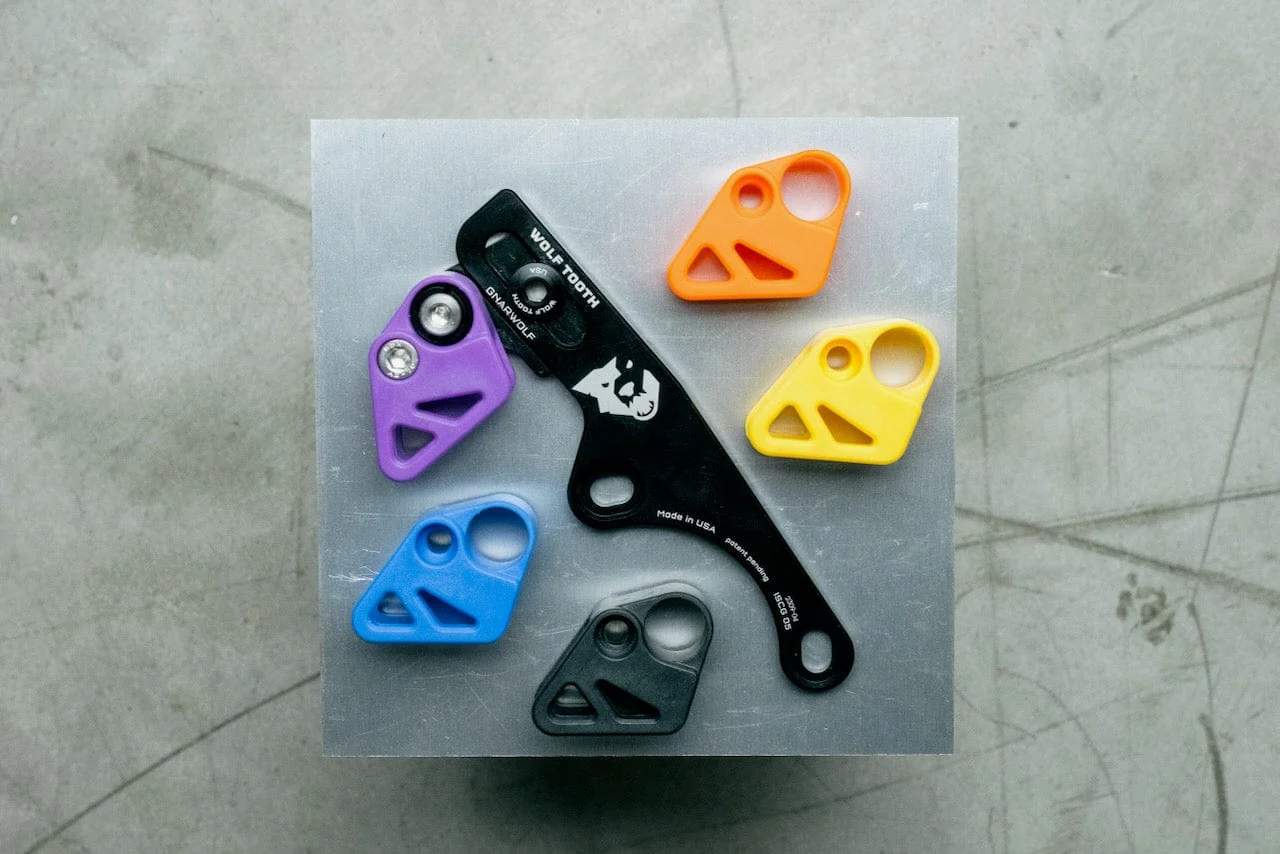

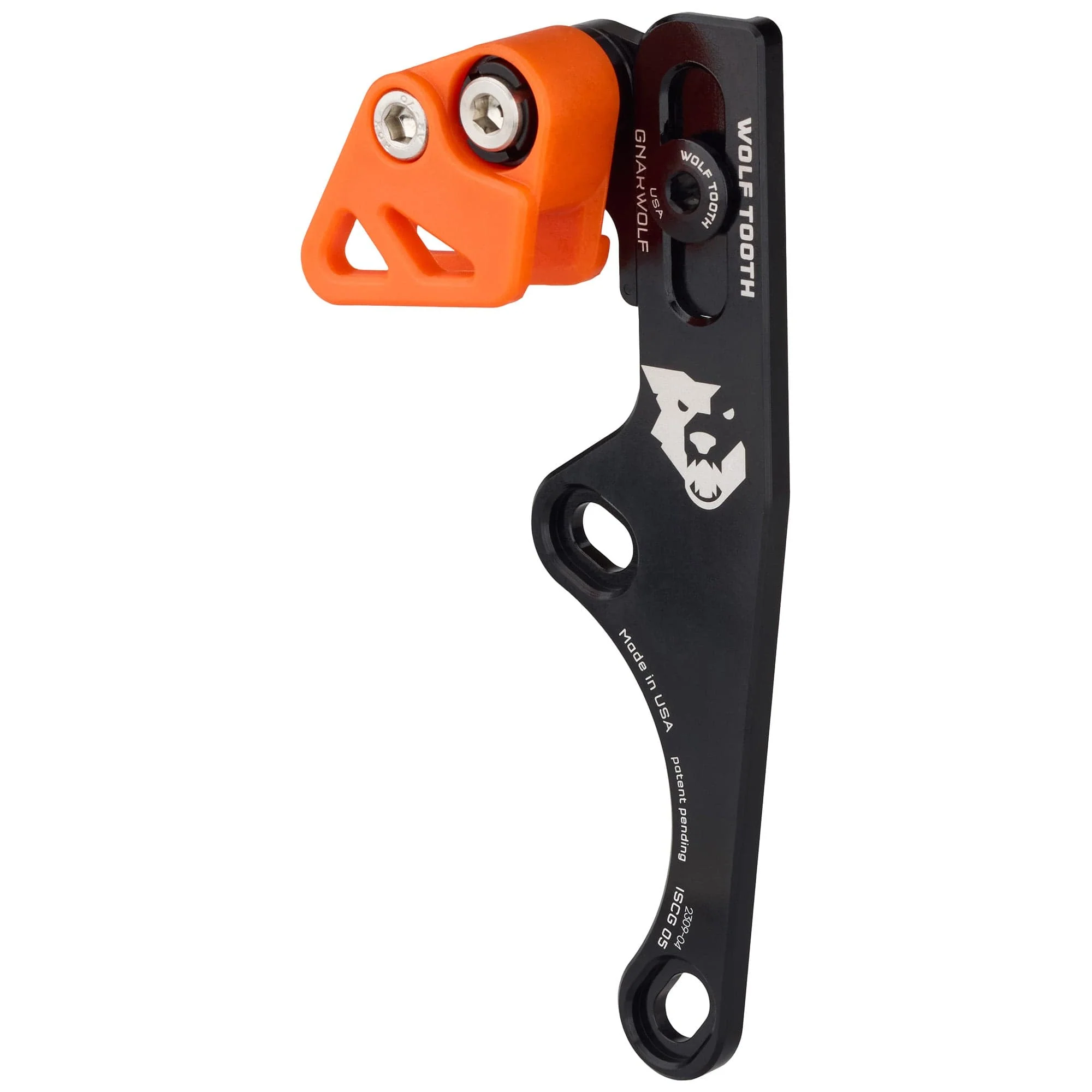

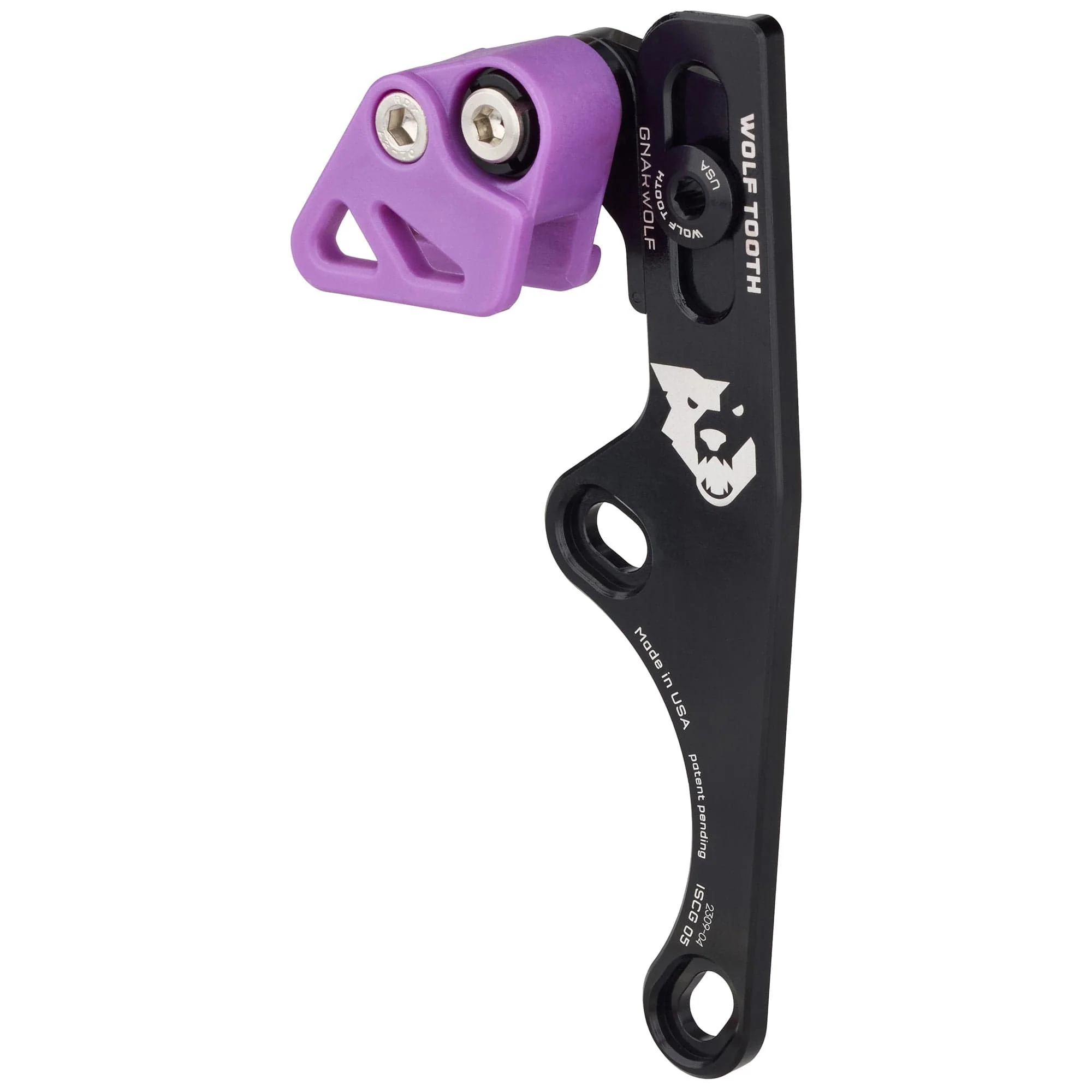

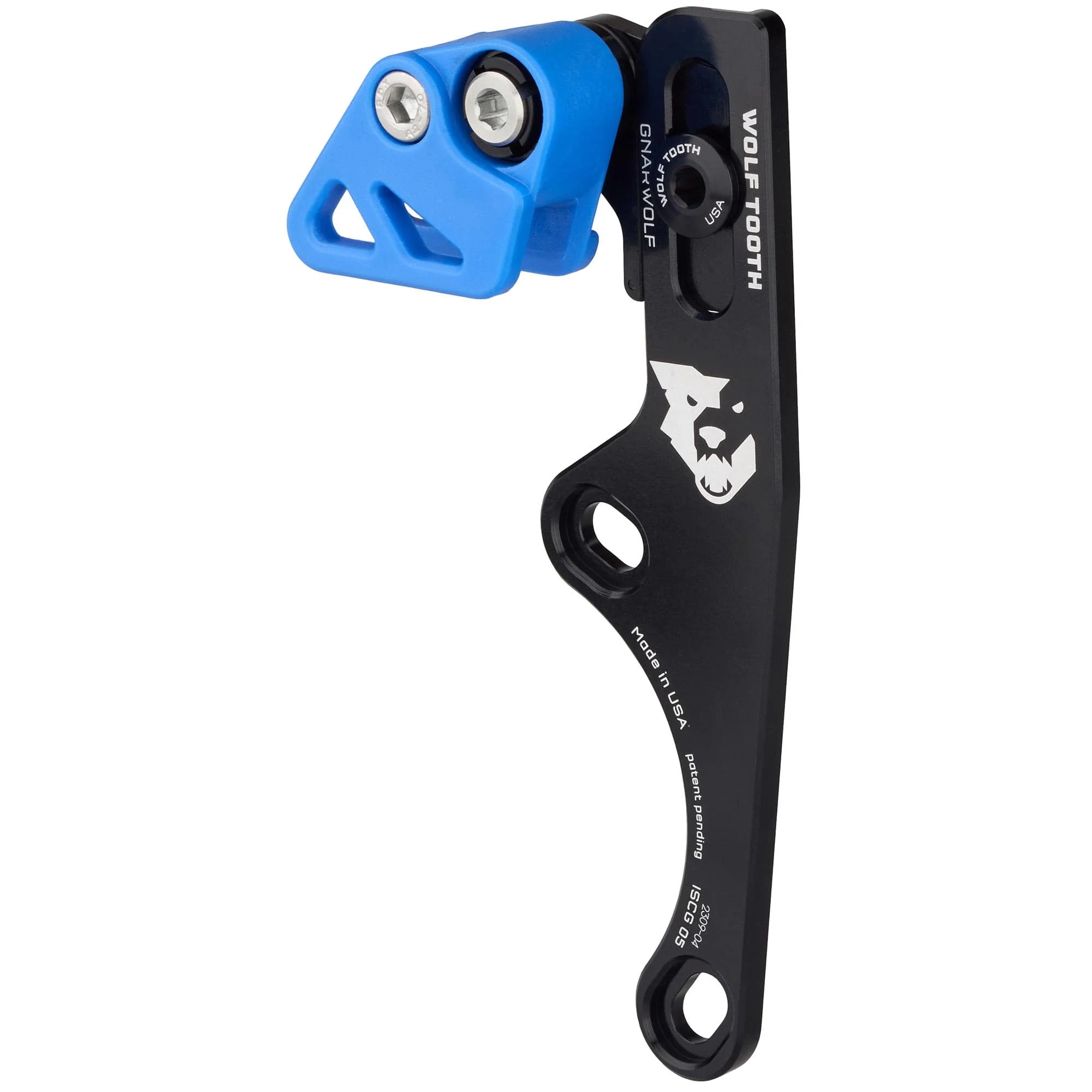

GnarWolf Chainguide ISCG-05 Mount rev2
The GnarWolf Chainguide ISCG-05 rev2 is designed for maximum chain retention while mountain biking or racing particularly rough gravel and CX. It is made for any bike that has ISCG-05 mount and a 1x drivetrain. The GnarWolf Chainguide will keep your chain on your chainring in the roughest and muddiest of conditions. Refer to image on this page for installation and adjustment instructions.
- 8mm of chainline adjustment via our GuideLock quick adjustment system. No shims required.
-
Infinite vertical adjustment between 28 and 36T for round chainrings and 28-34T oval chainrings
-
Loosen one screw to flip the guide out of the way for easy chain removal without losing any of the guide's adjustments
-
All adjustments made with common 4mm hex key
-
Designed for the rigors of Enduro, heavy trail, mud and even DH riding, the Wolf Tooth engineers made this guide extremely stiff and strong while keeping it light at 44g
-
Specific guide shaping is optimized for use with oval and round chainrings
-
Installation takes just a few minutes – no need to remove your crank arms
Compatibility
- Designed to fit on any bike with an ISCG 05 Mount

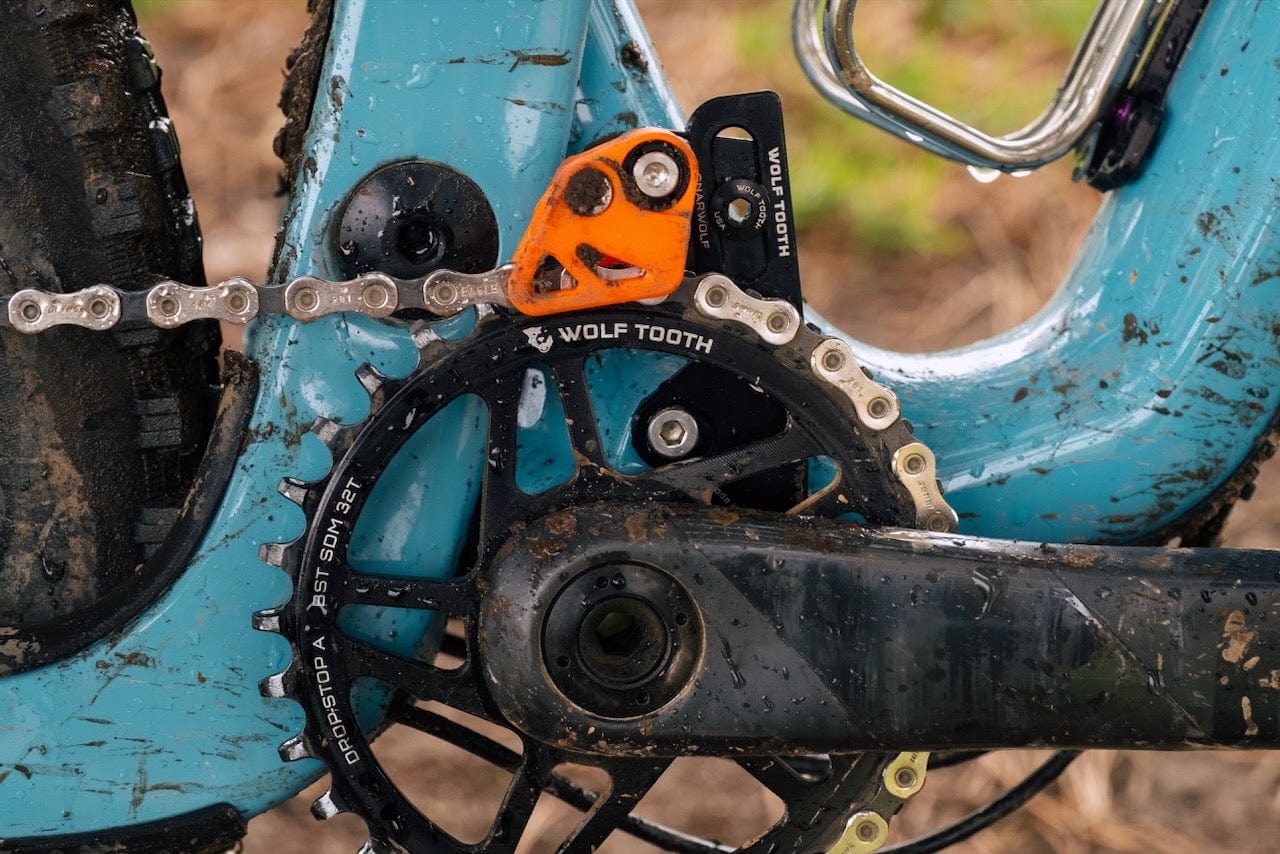

- Installation shown in photos on this page
- Optimized for use with both elliptical and round chainrings
- Round chainrings 28-36T or oval chainrings 28-34T
- For 1x drivetrain use only
- Minimum distance of 10mm between crank and center of ring
- Not compatible with crankset-mounted bashrings
- Due to frame and bike geometry, there will be some bikes that need modifications or flat out won't work. Here are the known exceptions:
- Ibis Mojo 3 - will not work
- Ibis Ripmo - will not work
- Ibis Ripley - will not work
- Specialized Stumpjumper 2016-2017 models require 1 mm of spacers (washers will work) between the frames ISCG05 mounts and the guide (the guide interferes with the frame otherwise).
- Evil The Following - will not work (upper swing arm interferes)
- Santa Cruz Tallboy & Nomad - will not work
Related Products
Tech Specs
Weight: 46g

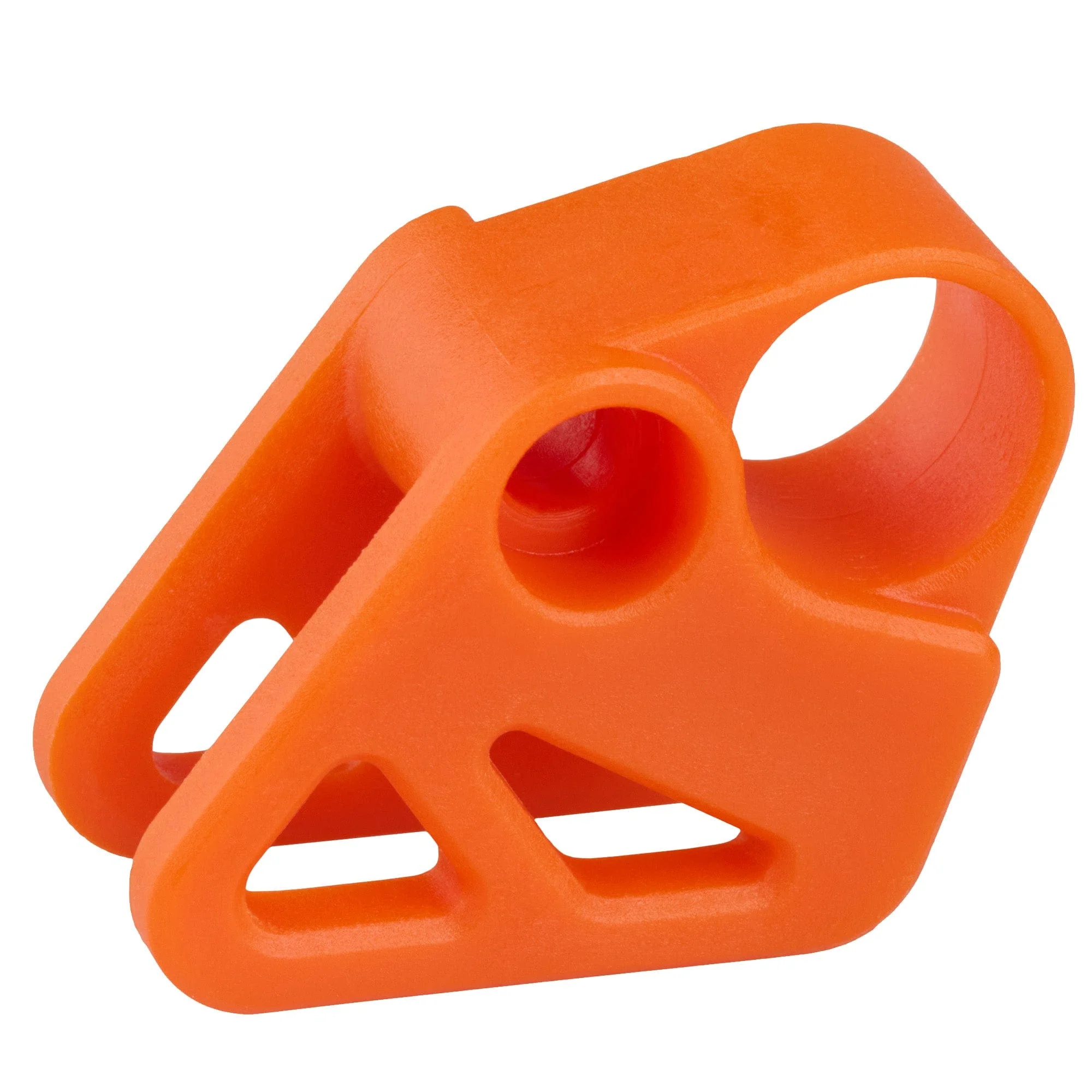

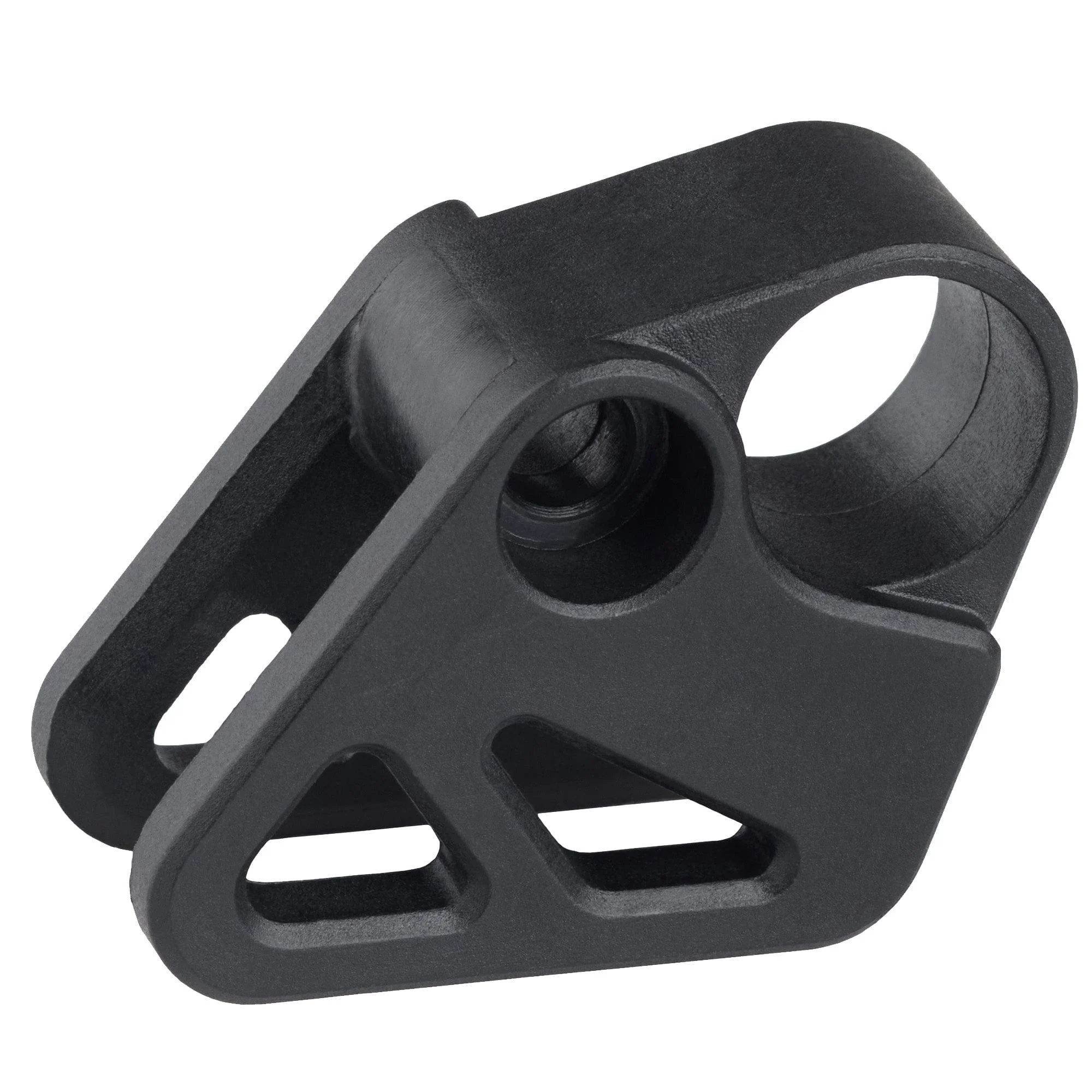

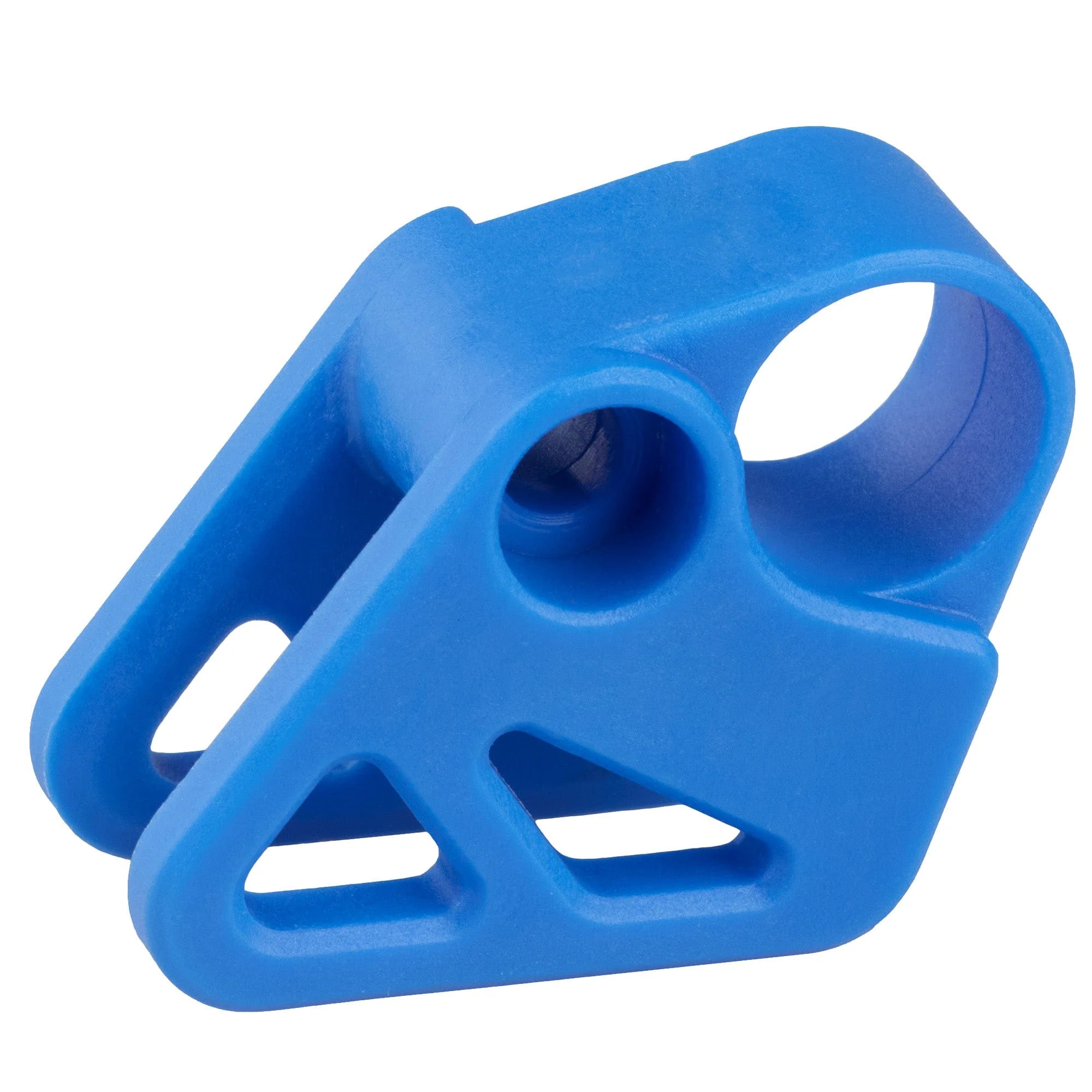

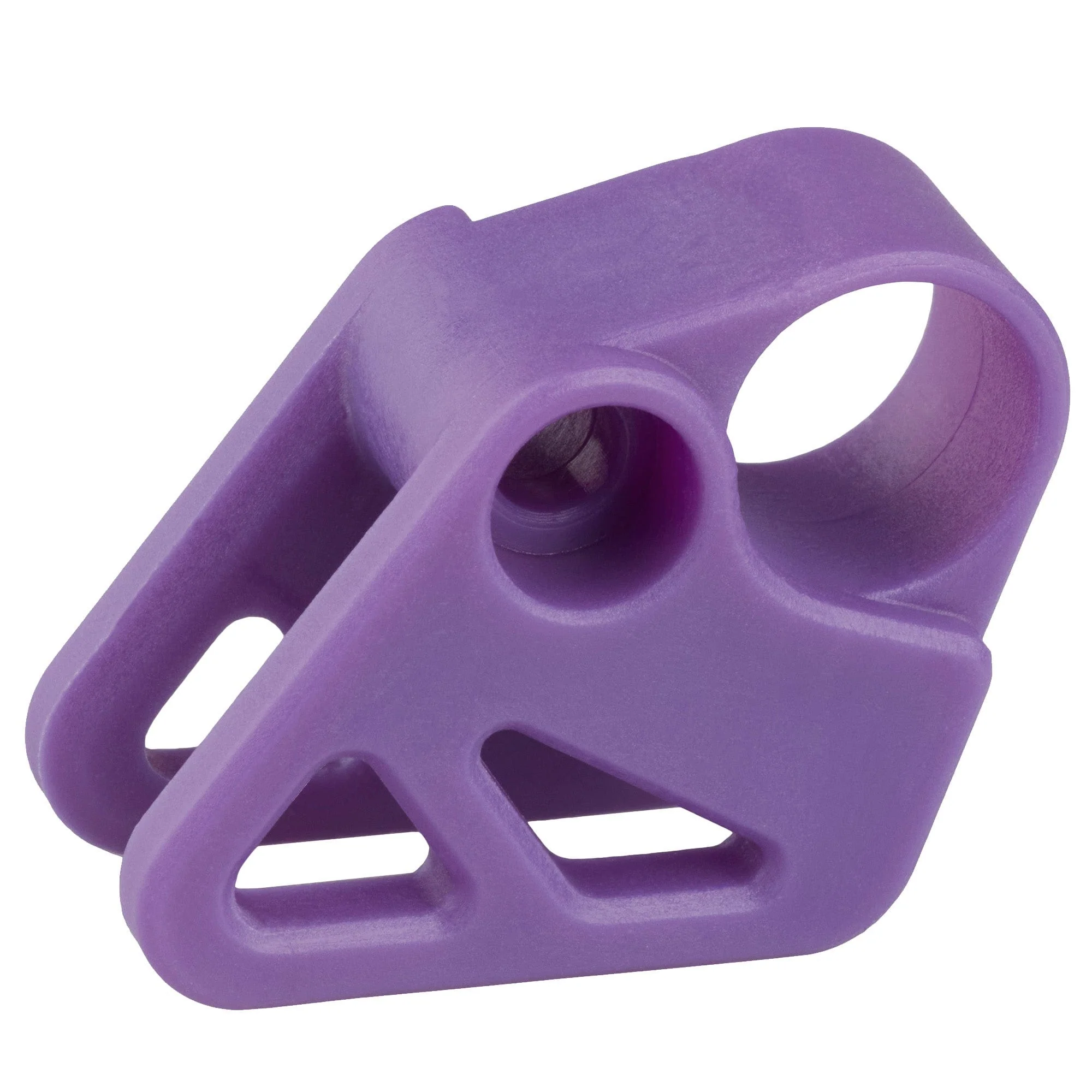

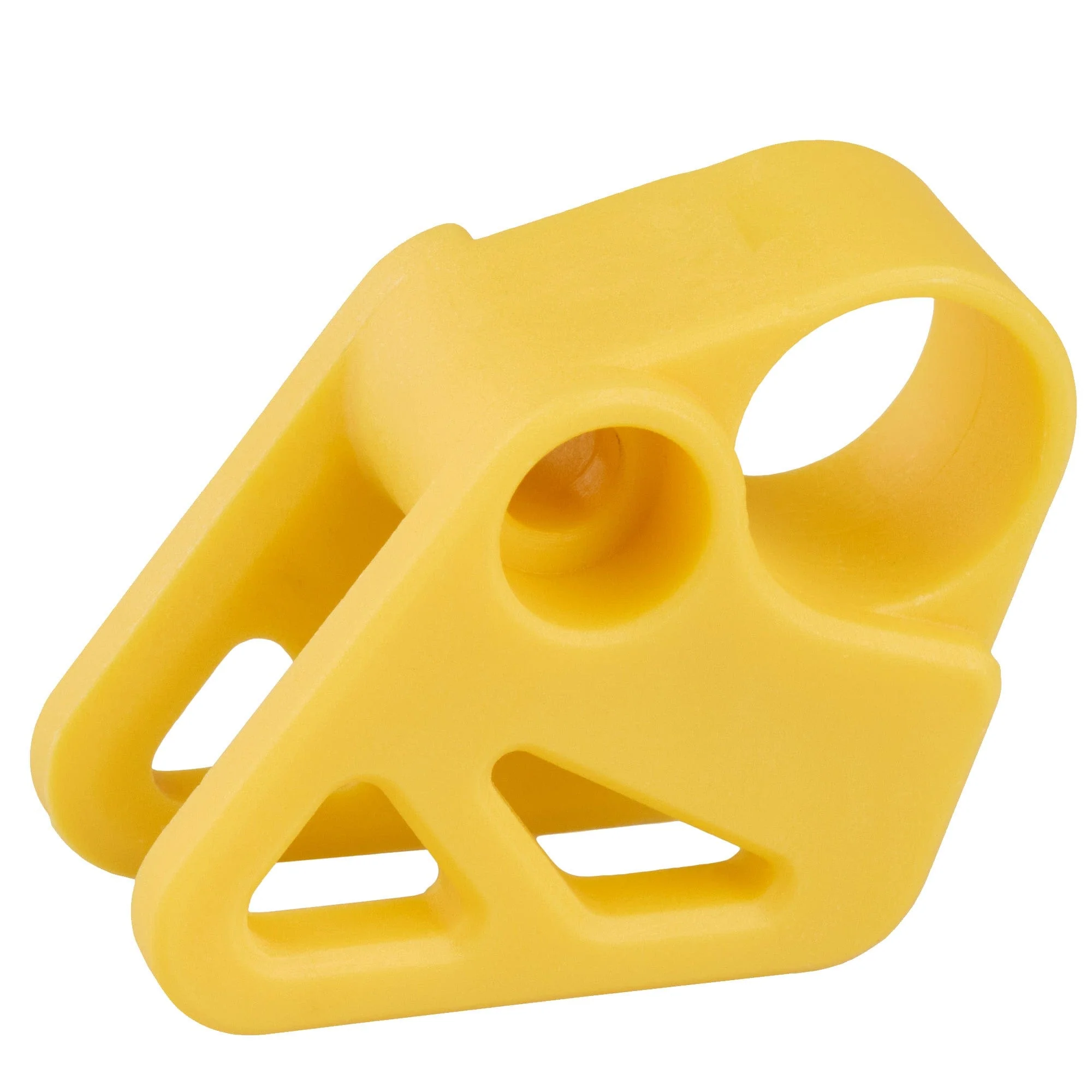

Material: 6061-T6 with stainless steel hardware, glass-filled nylon head
Made in the USA
US Patent 10464635
